Introduction



Data Lifecycle - collecting data. This tutorial will show you how to use Apache NiFi to pull data from a cloud storage solution, format it to send it into a messaging queue (Kafka), and finally consume from that queue to ingest it into both an Apache Hive ready format and an operational database (HBase).



Prerequisites





Outline





Watch Video



The video below provides a brief overview of what is covered in this tutorial:





Download Assets





You have two (2) options to get the assets needed for this tutorial:

  1. Download a ZIP file

It contains only necessary files used in this tutorial. Unzip tutorial-files.zip and remember its location.

  1. Clone our GitHub repository

It provides assets used in this and other tutorials; organized by tutorial title.

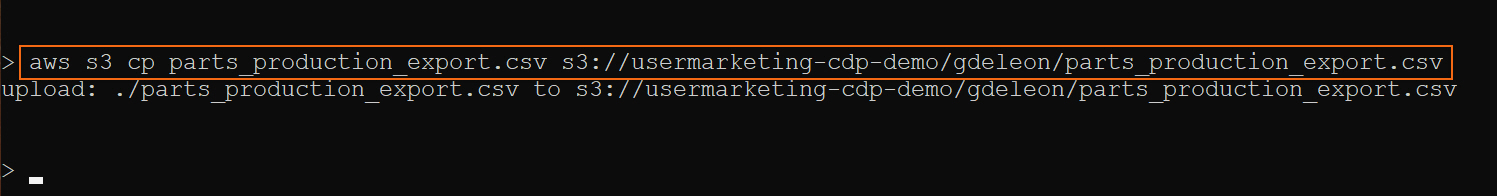

Using AWS CLI, copy file parts_production_export.csv to S3 bucket, defined by your environment’s storage.location.base attribute.

Note: You may need to ask your environment's administrator to get property value for storage.location.base.



For example, property storage.location.base has value s3a://usermarketing-cdp-demo; therefore copy the files using the command:

aws s3 cp parts_production_export.csv s3://usermarketing-cdp-demo/parts_production_export.csv



aws-copy-files



Provision Data Hub Clusters



This tutorial requires that we provision three (3) data hub clusters named:

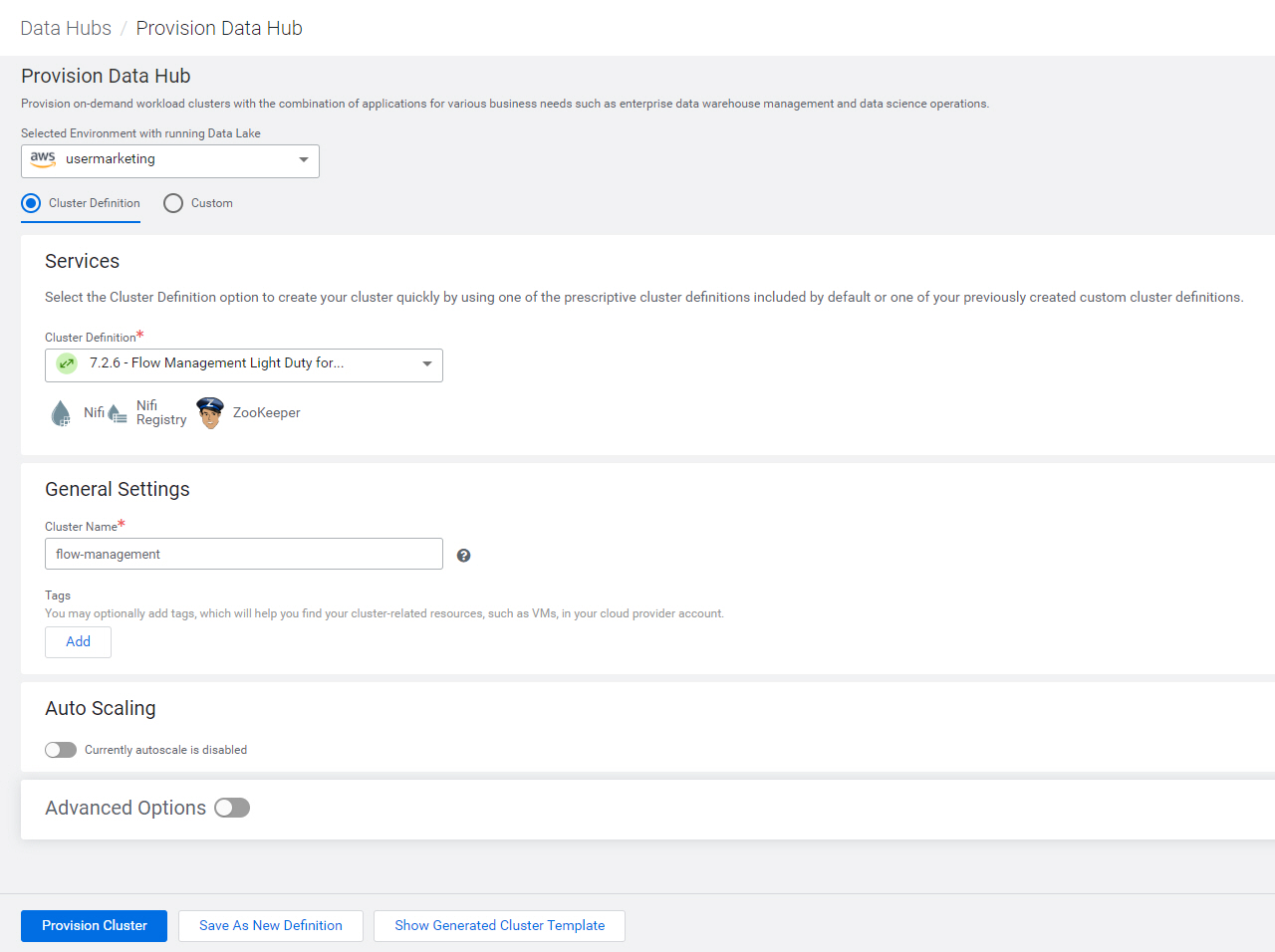

  1. flow-management, using cluster definition 7.x - Flow Management Light Duty for AWS



provision-flow-management

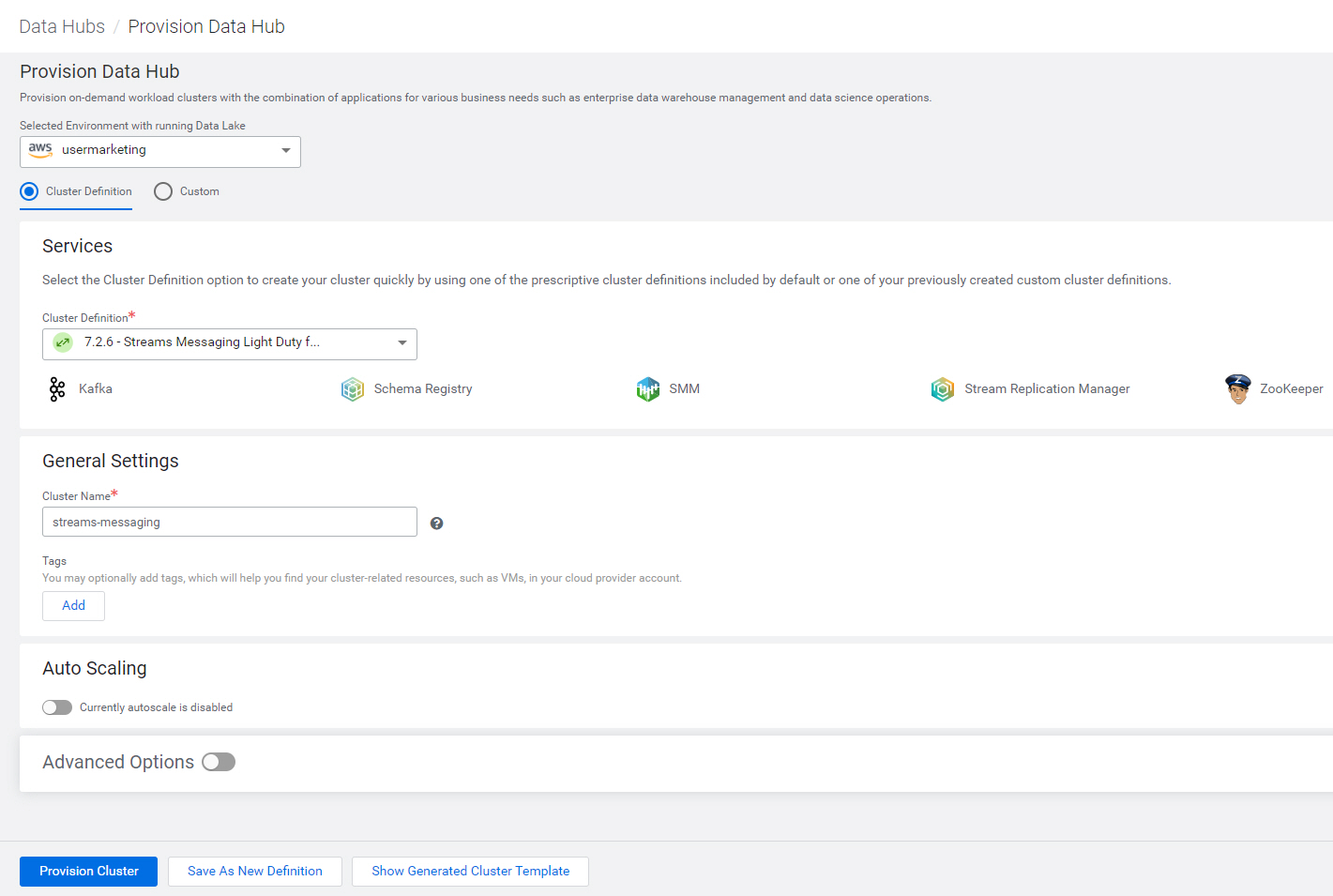

  1. streams-messaging, using cluster definition 7.x - Streams Messaging Light Duty for AWS



provision-streams-messaging



  1. operational-database, using cluster definition 7.x - Operational Database with SQL for AWS



provision-operational-database



Note: Your CDP environment may have different cluster definitions.

Refer to How to Create a Data Hub on Cloudera Data Platform for details on how to provision a Data Hub.





Data Hub Configuration



In this section, we’ll configure our Data Hub Clusters to communicate with one another.





Flow Management



From the operational-database data hub, download HBase configuration file, hbase-clientconfig.zip. Unzip the file and remember its location.



Begin from Operational Database Data Hub:

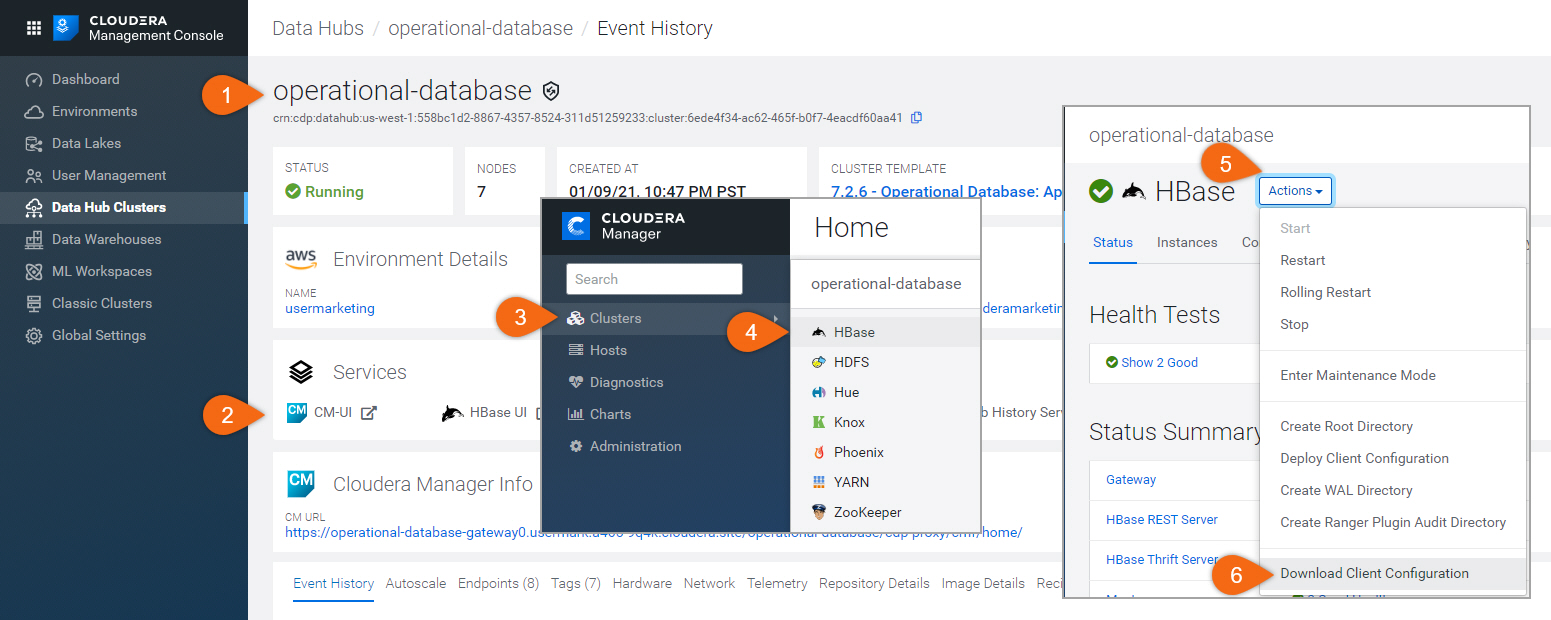

operational-database > CM-UI > Clusters > HBase > Actions > Download Client Configuration



download-hbase-config



Copy hbase-site.xml file into every NiFi worker node.

Note: There are other files in the client configuration file downloaded - we only need to copy hbase-site.xml.



Here is how to find all NiFi worker node(s) public IP addresses:

Begin from Flow Management Data Hub:

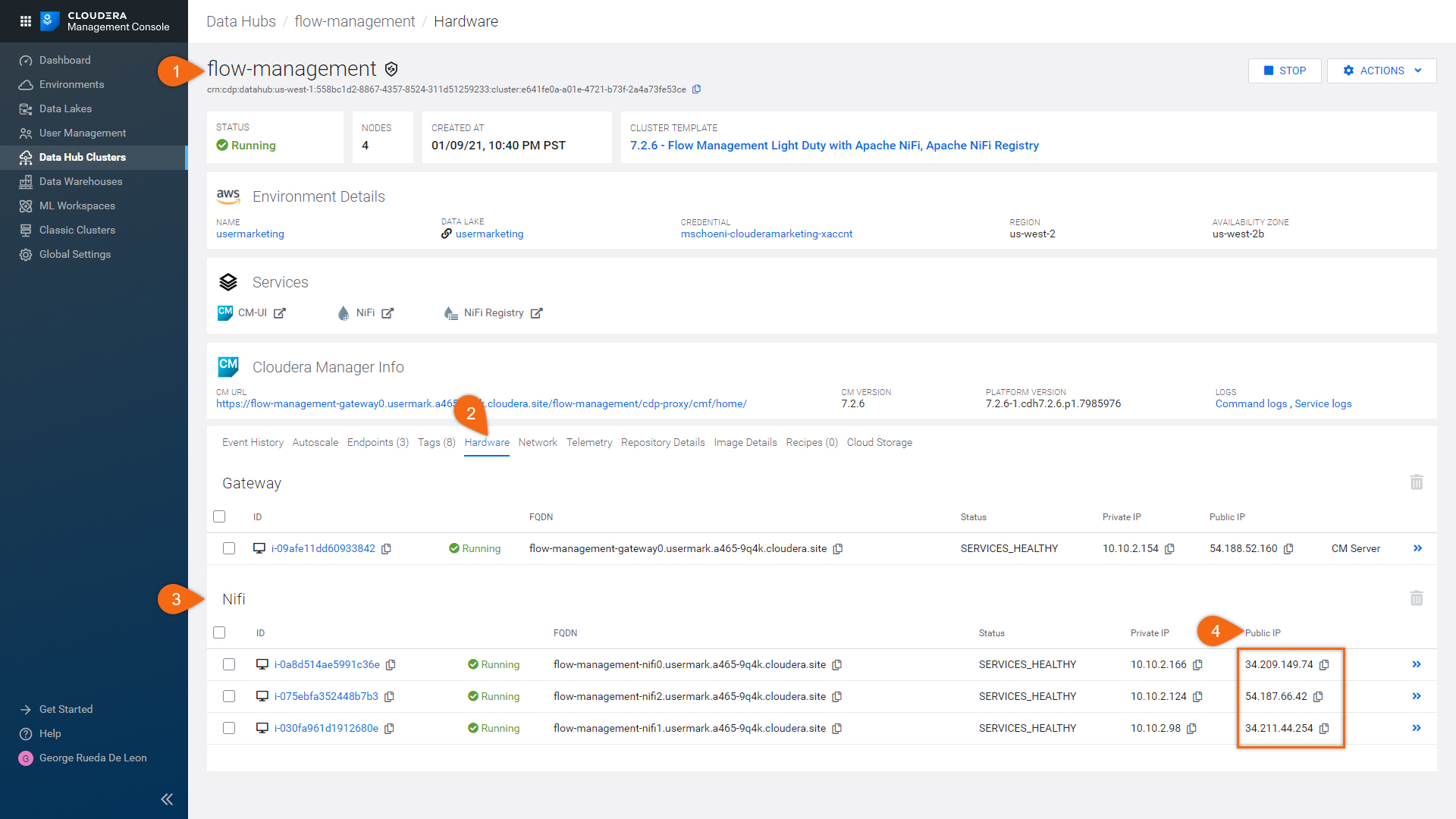

flow-management > Hardware > NiFi > Public IP



nifi-worker-nodes

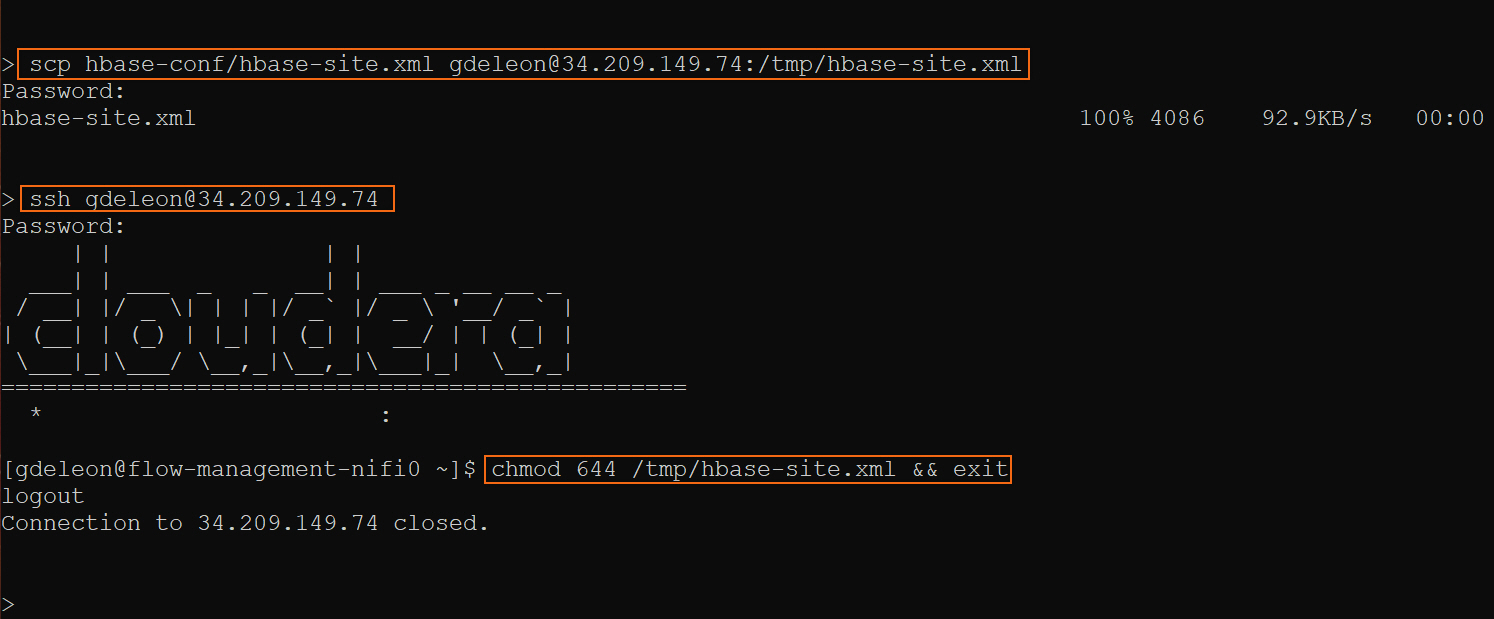

On the command line, issue the following commands on every NiFi worker node. This will copy the HBase configuration file, hbase-site.xml and set permissions accordingly:

Note: You need to update <USERNAME> and <PUBLIC_IP>, where <PUBLIC_IP> is the public IP address of each NiFi worker node.



scp hbase-conf/hbase-site.xml <USERNAME>@<PUBLIC_IP>:/tmp/hbase-site.xml



ssh <USERNAME>@<PUBLIC_IP>



chmod 644 /tmp/hbase-site.xml && exit





output-nifi-hbase-config



Operational Database



We need to create an HBase table and column family - this is where our data will finally be stored.

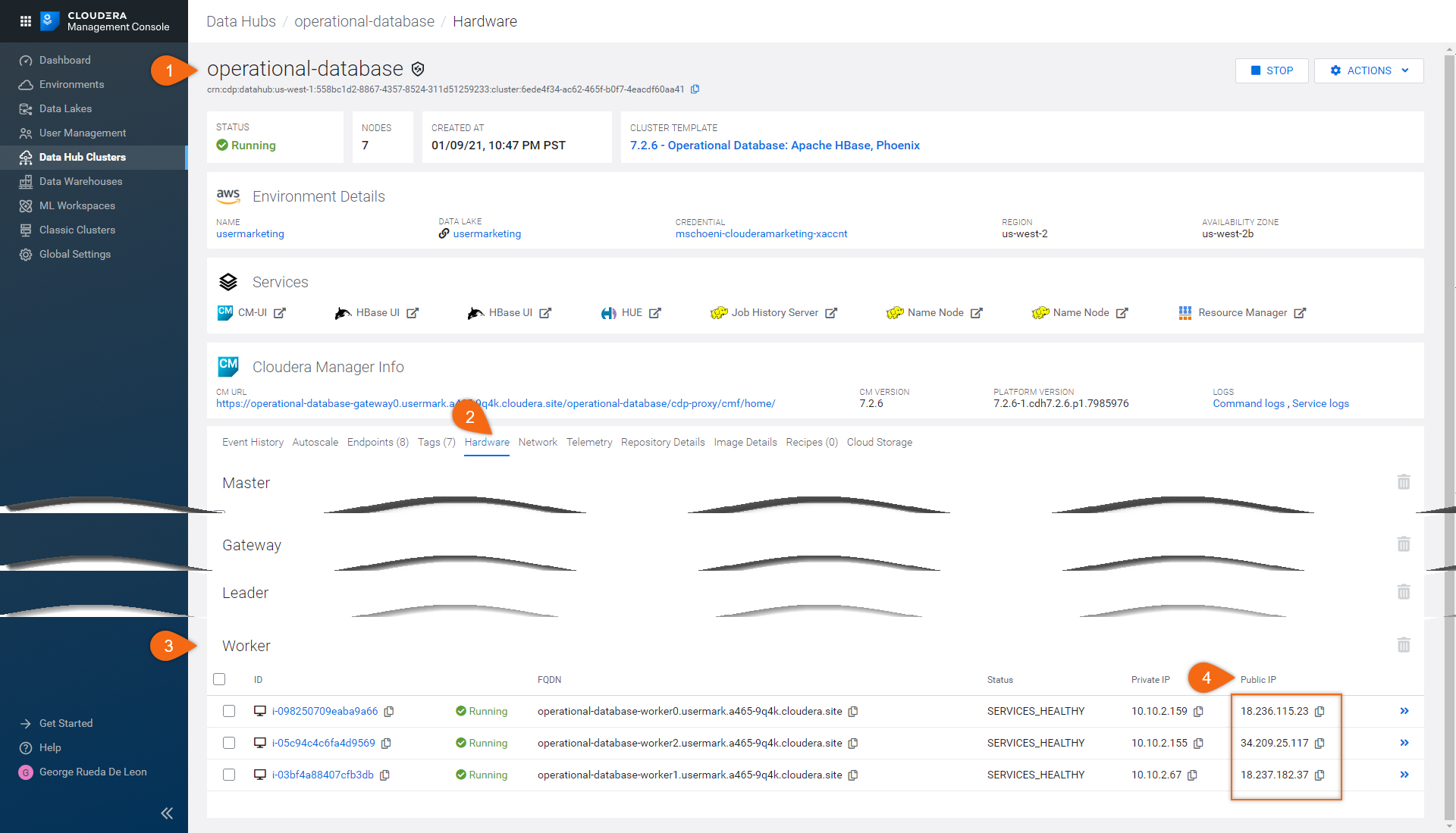

Determine HBase worker node(s) public IP addresses:

Begin from Operational Database Data Hub:

operational-database > Hardware > Worker > Public IP



opdb-worker-nodes

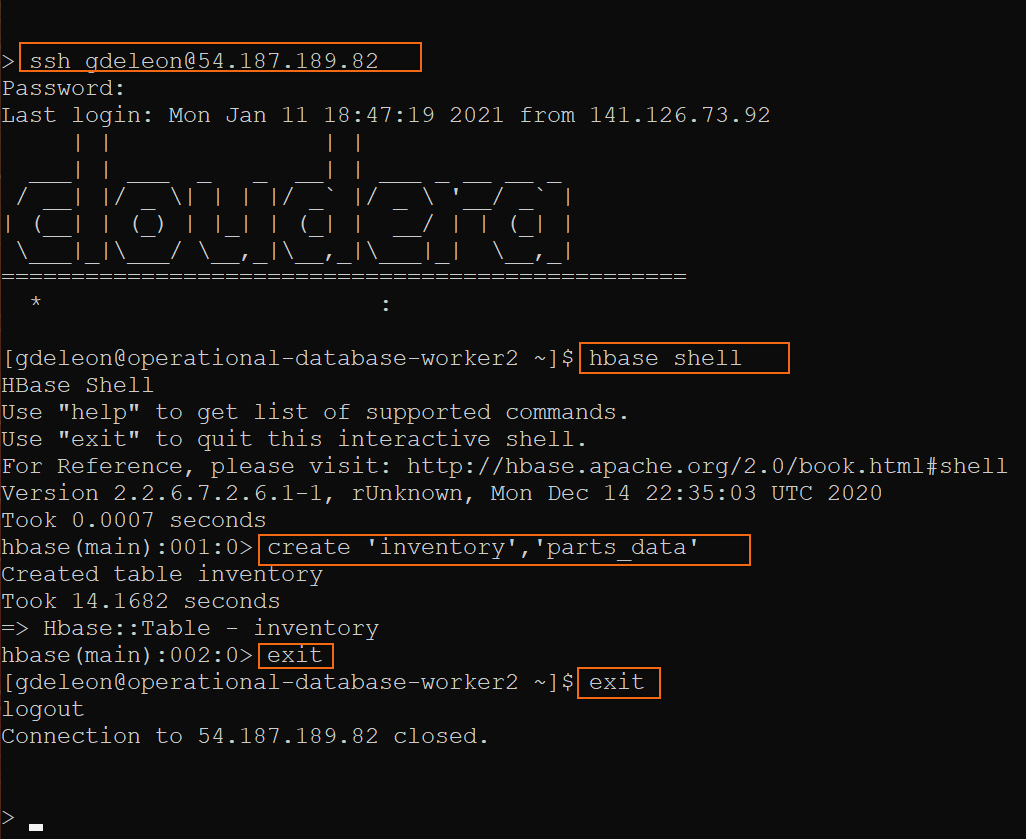

On the command line, SSH into any (one)  HBase worker node and issue the following commands to create a table and column family:



Note: You need to update <USERNAME> and <PUBLIC_IP>, where <PUBLIC_IP> is the public IP address of any (one) HBase worker node.



ssh <USERNAME>@<PUBLIC_IP>



hbase shell



create 'inventory','parts_data'



exit



exit



output-hbase-create-table



Streams Messaging

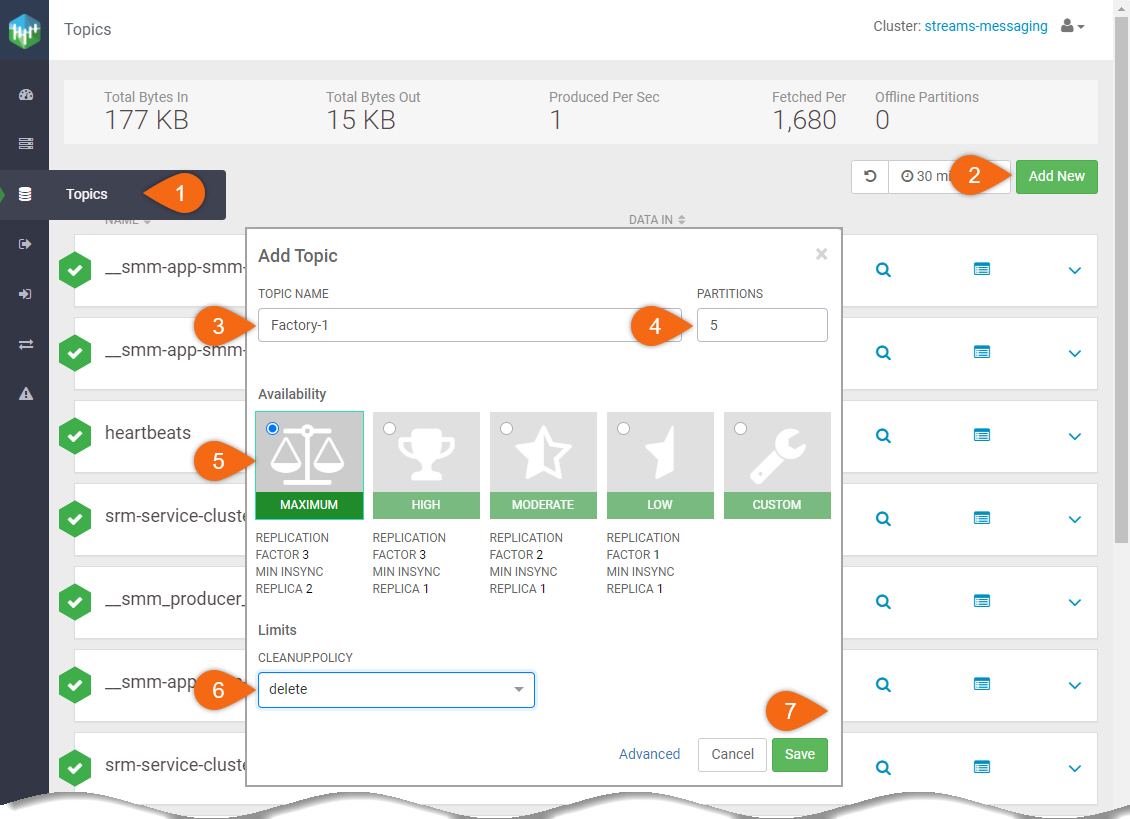

Let's create five (5) new Topics:

Begin from Streams Messaging Data Hub:

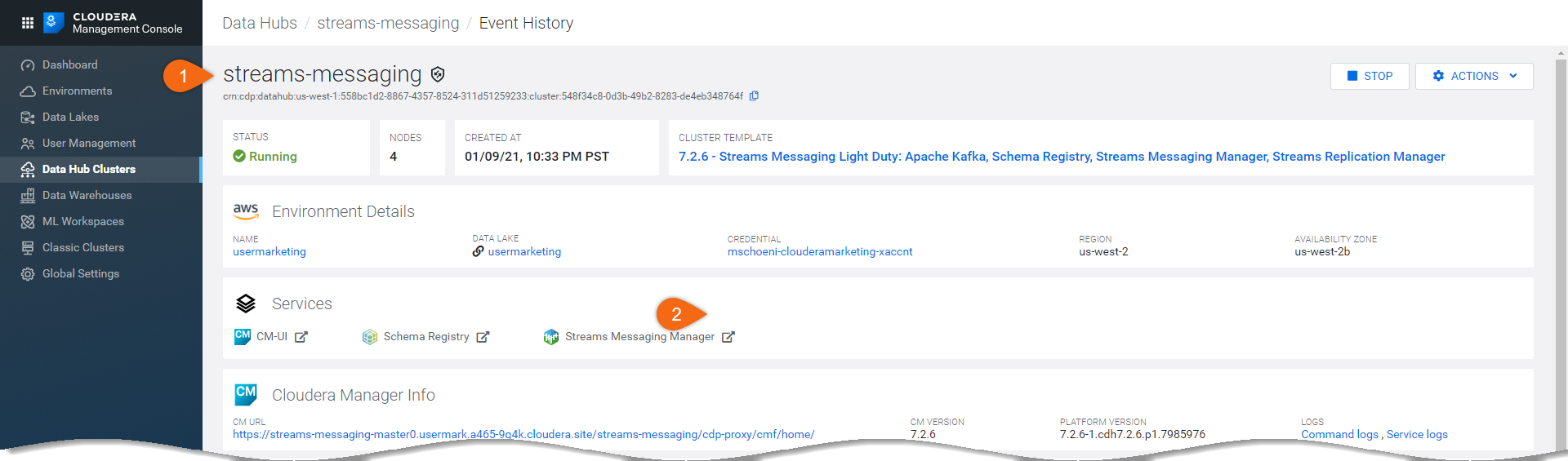

streams-messaging > Streams Messaging Manager



open-streams-messaging



  1. Select Topics
  2. Select Add New
  3. TOPIC NAME: Factory-1
  4. PARTITIONS: 5
  5. Availability: Maximum
  6. Cleanup Policy: delete
  7. Save

Repeat the same steps to create the following named topics:

Factory-2

Factory-3

Factory-4

Factory-5



smm-add-topics



Build and Configure NiFi Data Flow



Instead of building the data flow from scratch, we will use the template provided in download assets. If you want to learn to build the data flow from scratch, take a look at Importing RDBMS Data into Hive.



Begin from Flow Management Data Hub:

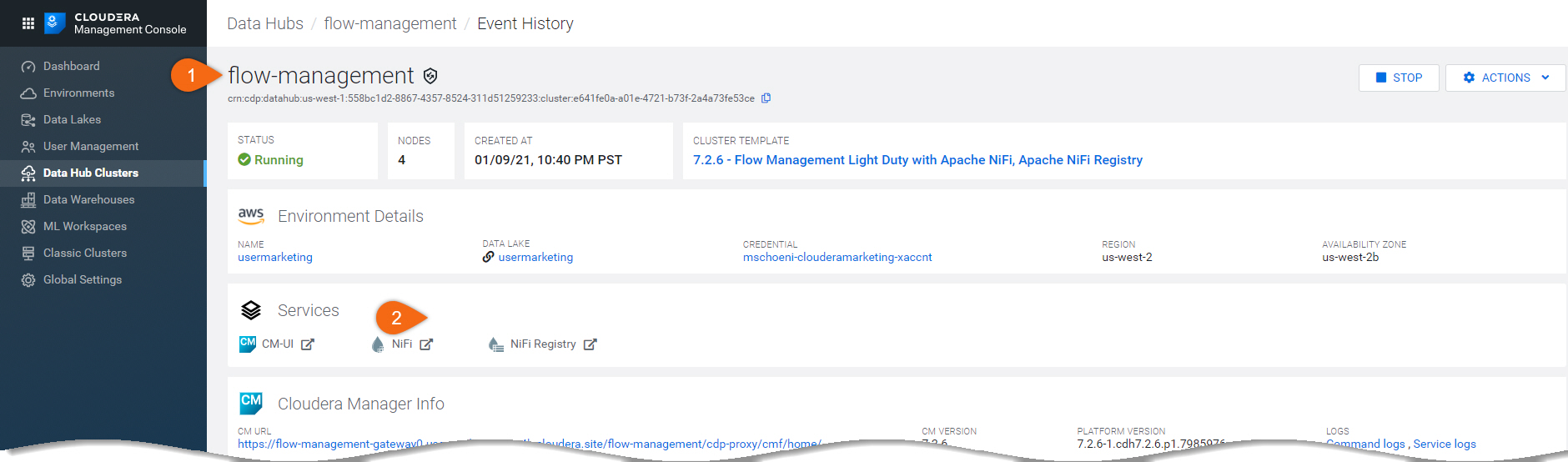

flow-management > NiFi







open-flow-management



Upload NiFi Template



NiFi data flow template, collect-dataflow-template.xml, was provided in download assets. Follow these easy  steps to upload.



  1. Click on  to upload collect-dataflow-template.xml template
  2. Click and drag  into the canvas and select collect-dataflow-template





Create Variables used in Data Flow



Right-click anywhere on the canvas, outside the processor groups and select Variables.

Click on to create a new variable:

  • Name: username, Value: <use your CDP workload username>
  • Name: file_location, Value: <environment’s storage.location.base attribute>
  • Name: kafkabrokers, Value: <list of all Kafka broker addresses, separated by commas>

Kafka broker addresses are found in Streams Messaging Data Hub.

streams-messaging > Streams Messaging Manager



open-streams-messaging

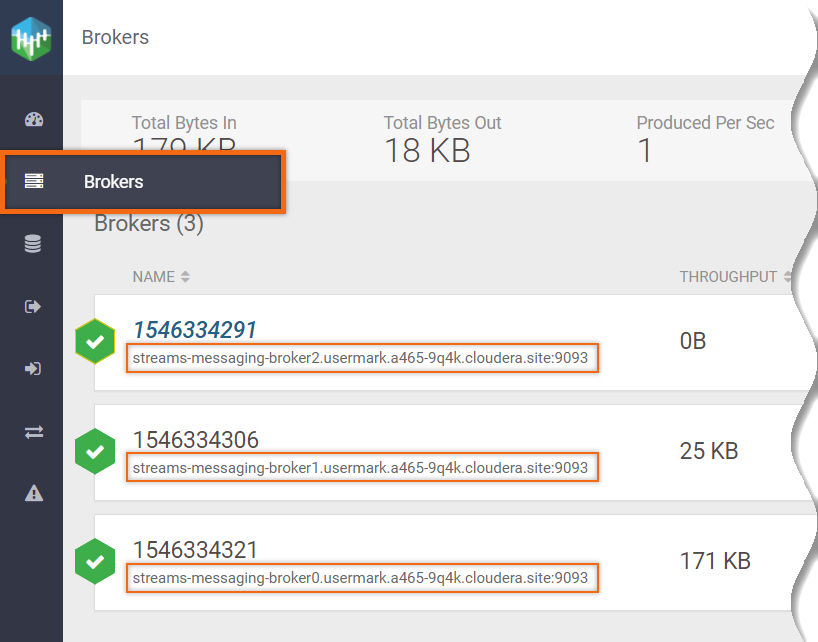

Select Brokers

The broker address is located underneath its name.



broker-addresses

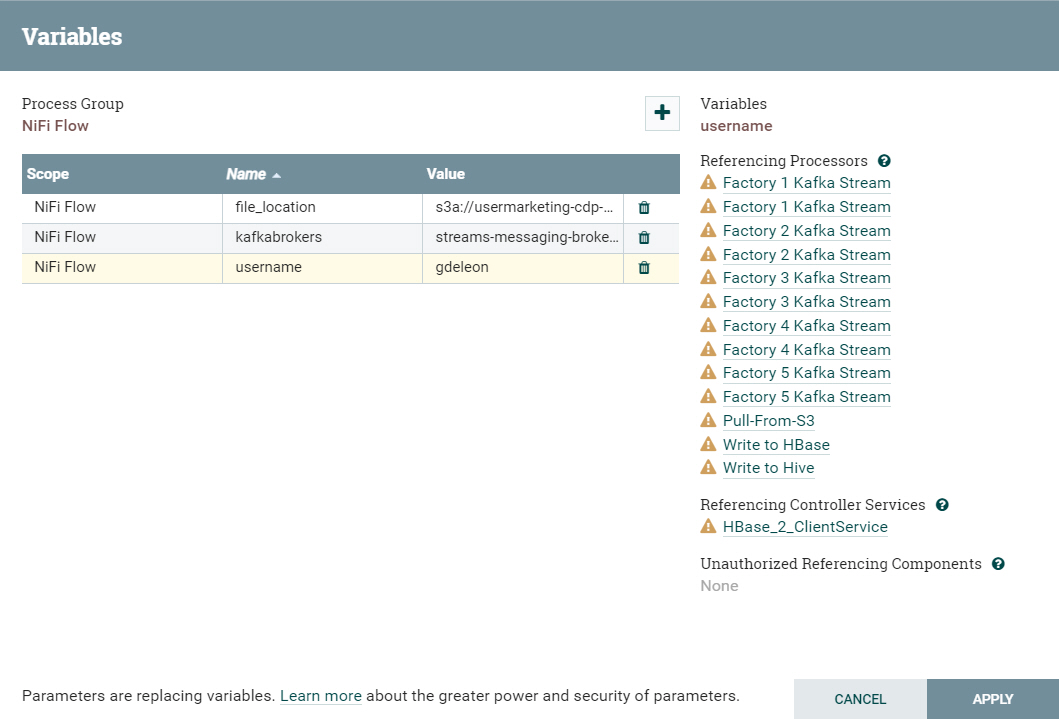

The variables defined should look something like:



nifi-variables



Configure Controller Services

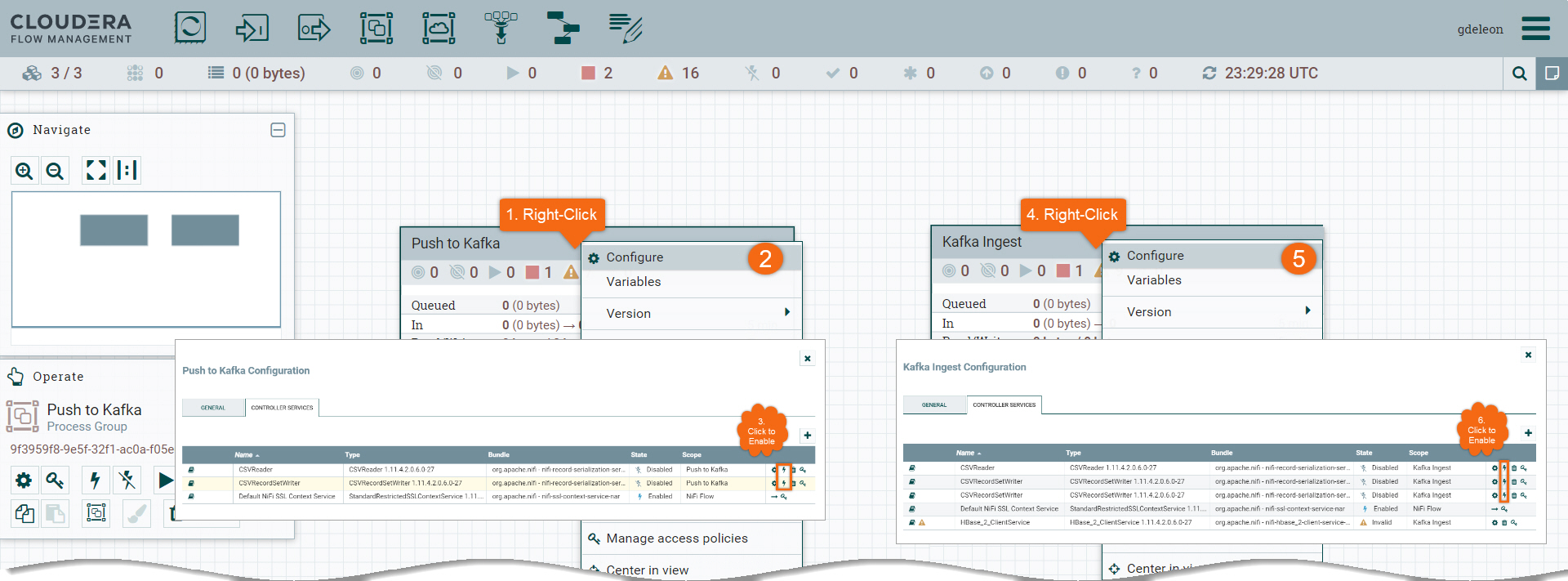

  1. Right-click on processor group Push to Kafka
  2. Select Configure
  3. Enable CSVReader and CSVRecordSetWriter by clicking on

Note1: You should see two (2) services named Default NiFi SSL Context Service. Delete the one marked with .

  1. Right-click on processor group Kafka Ingest
  2. Select Configure
  3. Enable CSVReader and both CSVRecordSetWriter by clicking on

Note2: Do not close Kafka Ingest configuration window after enabling the service controllers. We have one (1) more controller to enable.



nifi-enable-service-controllers

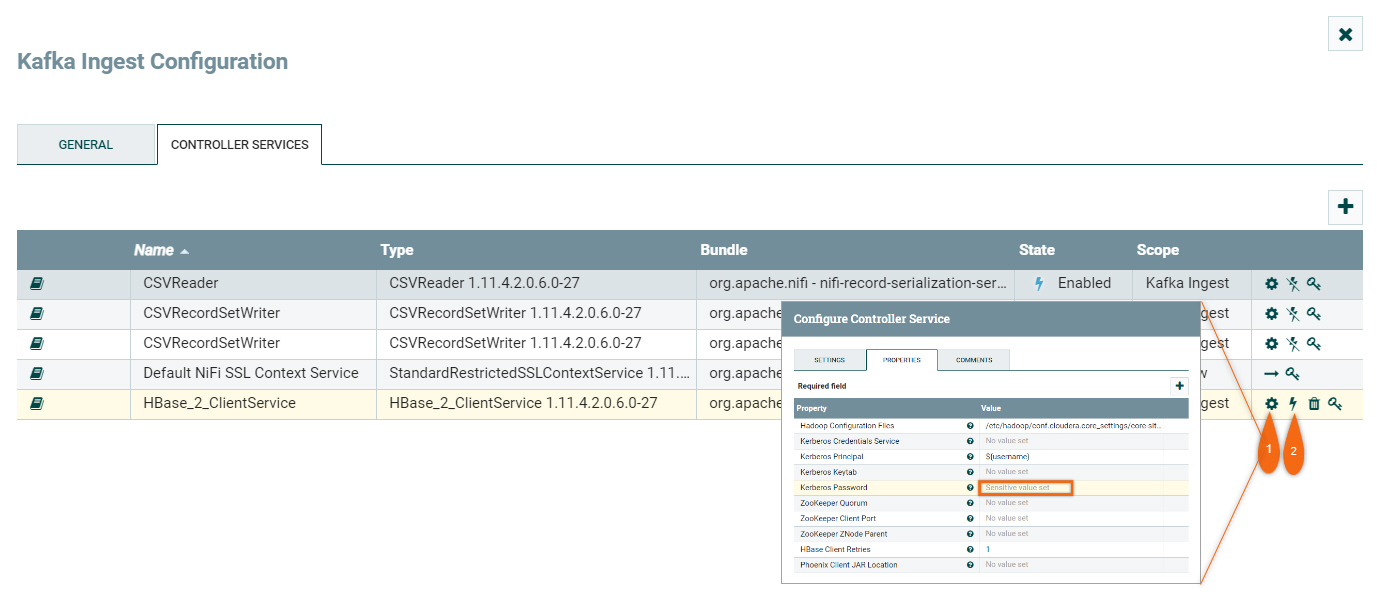

There are two (2) steps in enabling HBase_2_ClientService controller:

  1. Update property Kerberos Password with your CDP workload password by clicking
  2. Enable it by clicking



nifi-enable-hbase-controller



Configure Processors

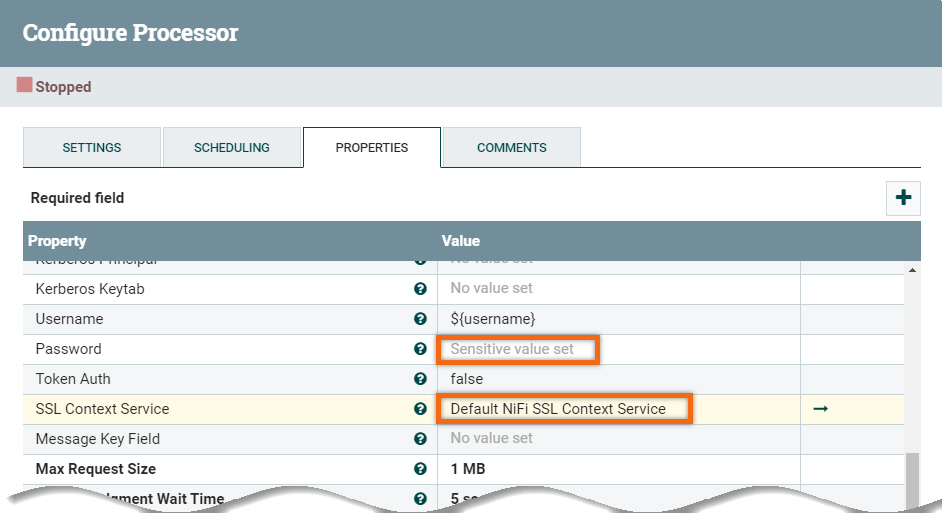

Several processors, in each group, require passwords. We will update them using your CDP workload password.





Push to Kafka processor group



Expand processor group and update properties for the following processors:

  • Pull-From-S3: update Kerberos Password
  • Factory 1 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service
  • Factory 2 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service
  • Factory 3 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service
  • Factory 4 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service
  • Factory 5 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service





Kafka Ingest processor group



Expand processor group and update properties for the following processors:

  • Factory 1 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service
  • Factory 2 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service
  • Factory 3 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service
  • Factory 4 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service
  • Factory 5 Kafka Stream: update Password and SSL Context Service with Default NiFi SSL Context Service
  • Write to Hive: update Kerberos Password



nifi-processor-update



Run Data Flow



Let's run the data flow you have just created. You have the option to run all processor groups, a processor group at a time or single processor at a time. For general debugging and diagnostics, it is recommended to run one processor at a time. This will allow you to validate data in the list queues.



We will run one processor group at a time.

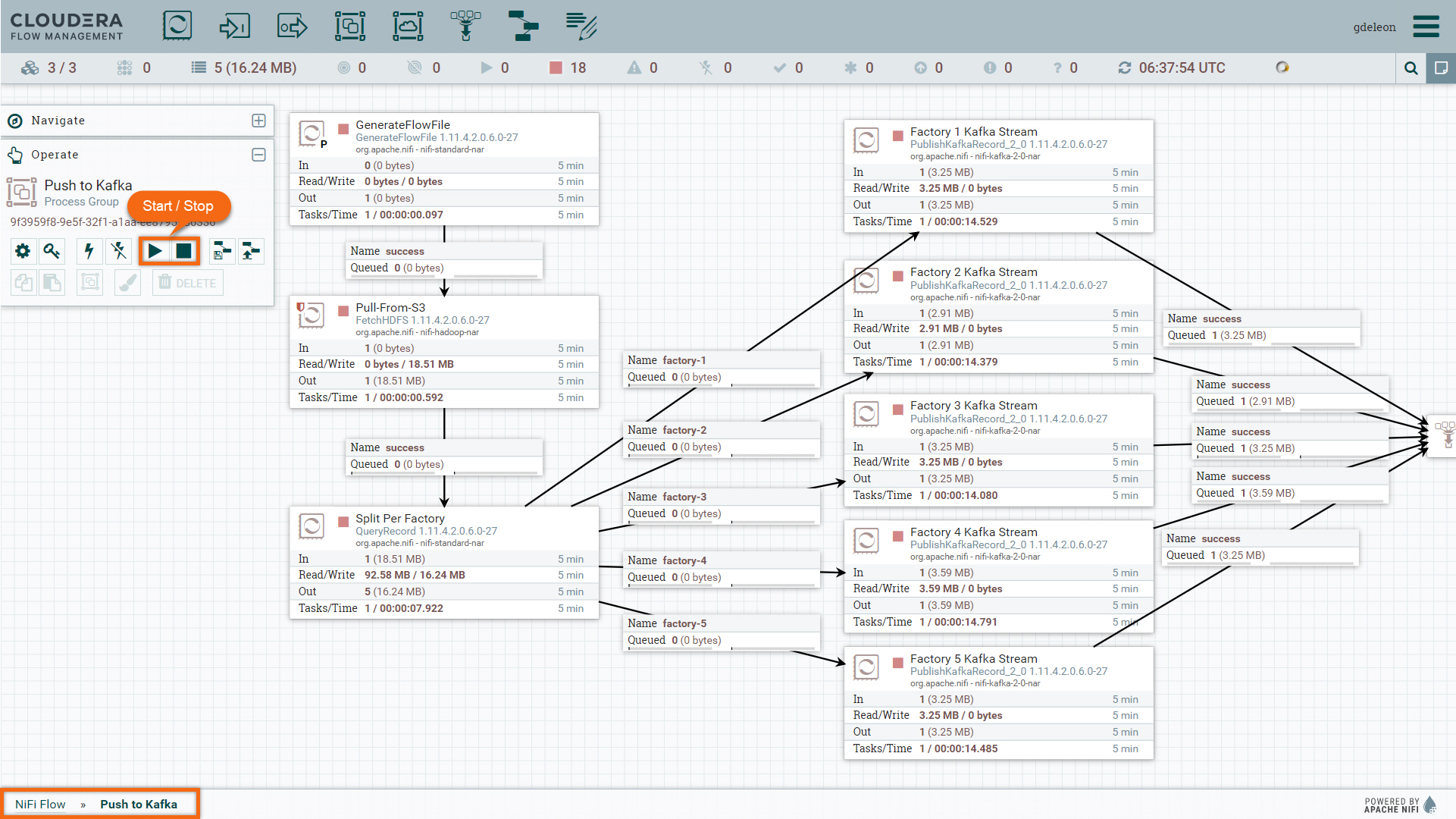

Expand processor group Push to Kafka and run all processors at once by clicking in the Operate menu.

After a few seconds, you will see the data flow through all the processors. Click on from the Operate menu to stop all processors at once.



nifi-run-flow-push

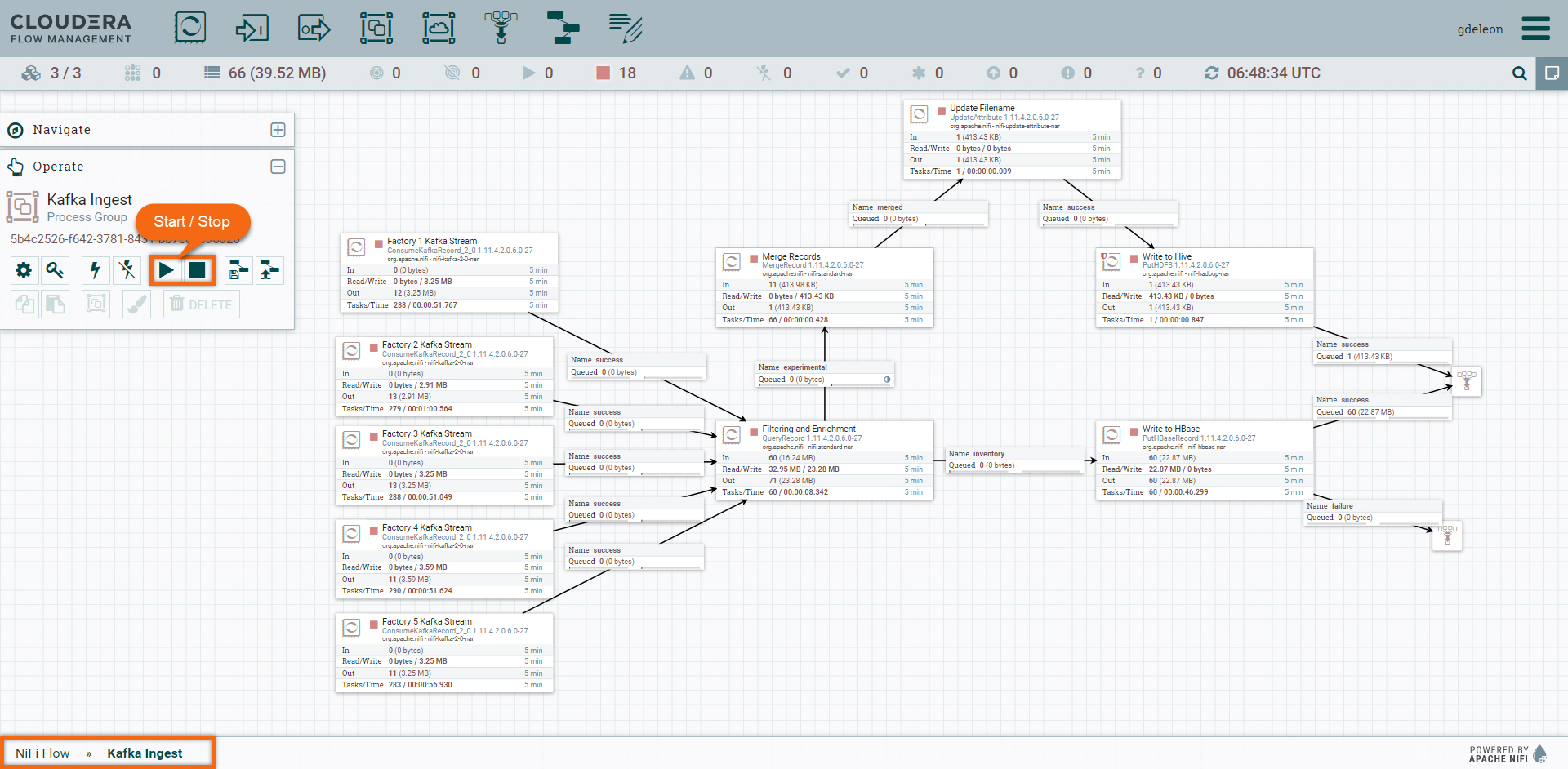

Expand processor group Kafka Ingest and  run all processors at once by clicking in the Operate menu.

After a few seconds, you will see the data flow through all the processors. Click on from the Operate menu to stop all processors at once.



nifi-run-flow-ingest



Let’s see metrics on one of the Factory Kafka Topics we created.



Begin from Streams Messaging Data Hub:

streams-messaging > Streams Messaging Manager



open-streams-messaging

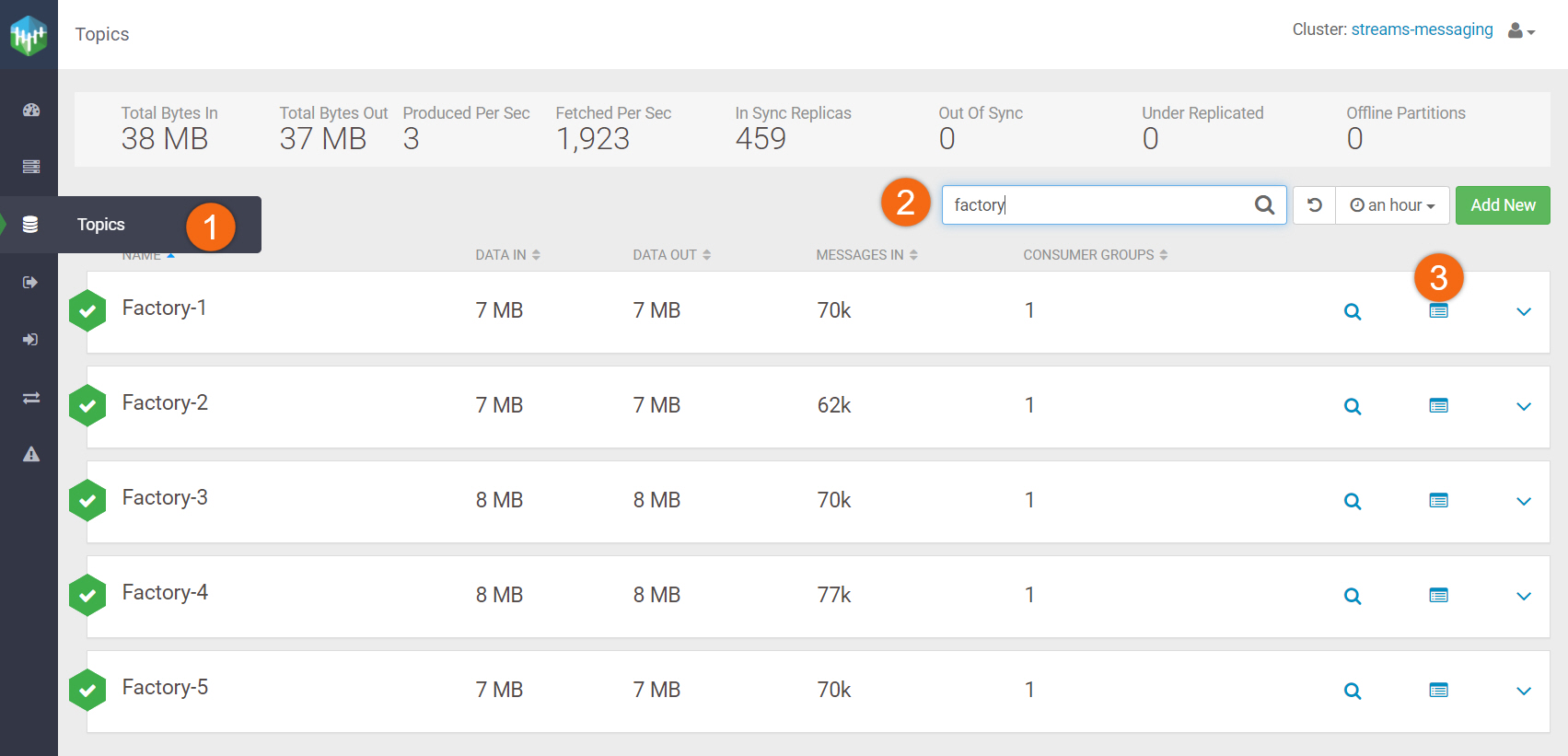

Let's take a look at one of the factory's profile.

  1. Select Topics
  2. Search for factory
  3. Click on  to view profile for Factory-1.



kafka-profile-factory1

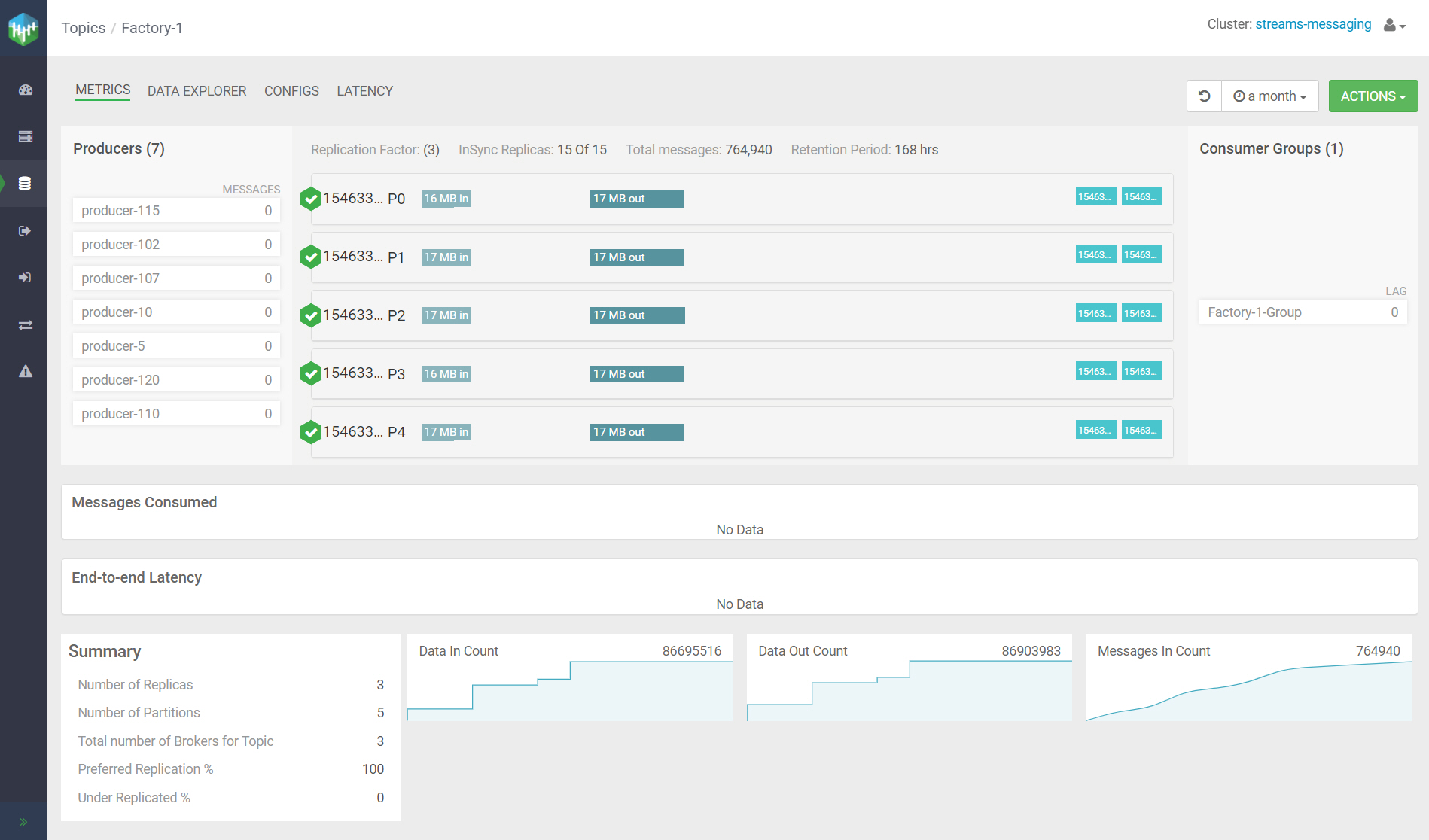

Here's an example of metrics gathered for Factory-1:



kafka-metrics-factory1



View HBase Data

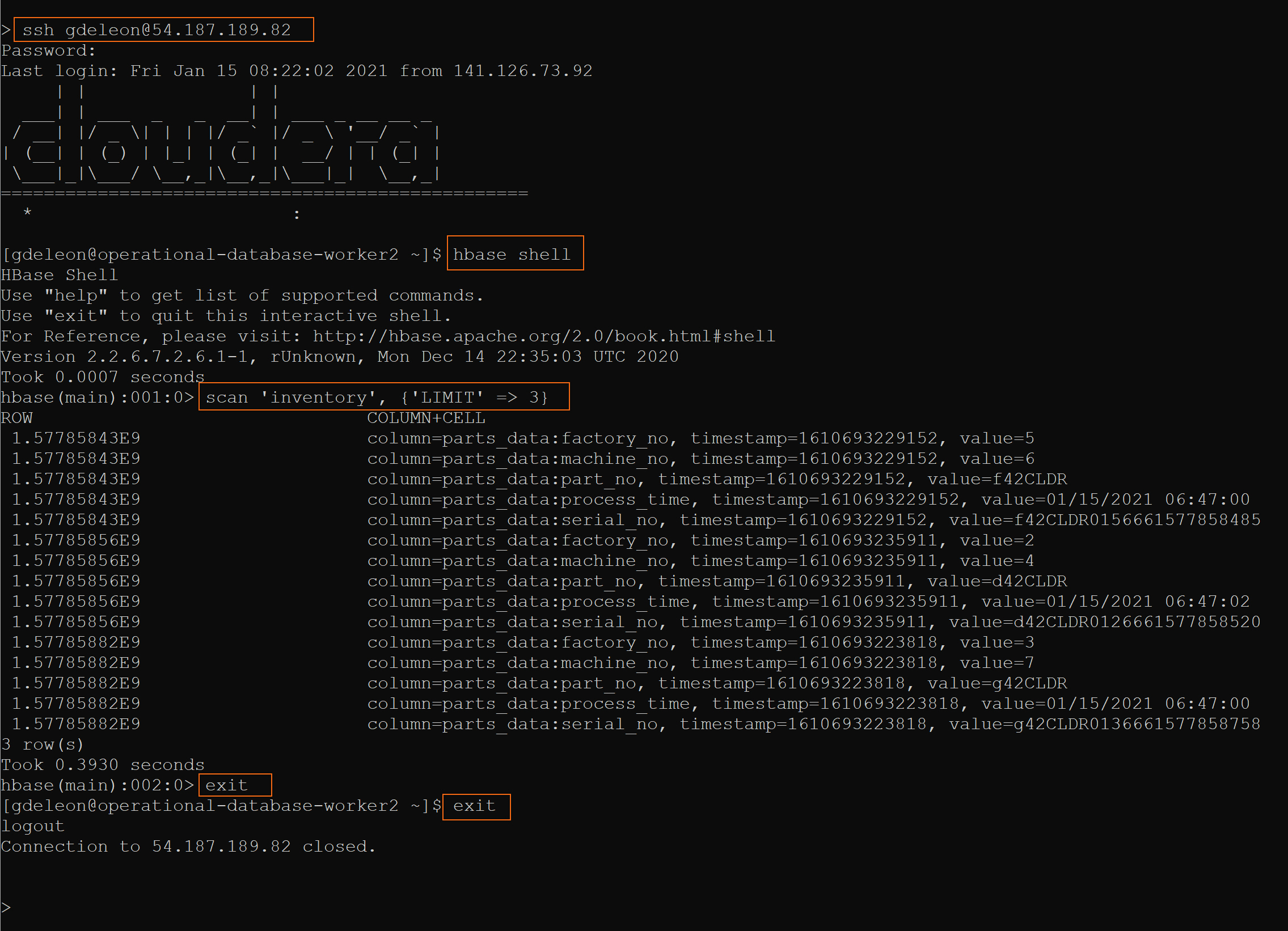

Let's take a brief look at the data stored in HBase table inventory:



On the command line, SSH into any (one)  HBase worker node and issue commands - just as you did before:

Note: You need to update <USERNAME> and <PUBLIC_IP>, where <PUBLIC_IP> is the public IP address of any (one) HBase worker node.



ssh <USERNAME>@<PUBLIC_IP>



hbase shell



scan 'inventory', {'LIMIT' => 3}



exit



exit



output-hbase-scan-table



Summary



Congratulations on completing the tutorial.

As you've now experienced, it takes a small amount of effort to configure multiple Data Hub clusters to communicate with one another using Cloudera Data Platform - Public Cloud (CDP-PC).

NiFi’s flexible processors make it simple to extract, transform and load data into HBase - hopefully this tutorial sparks your imagination and inspires other creative solutions.
